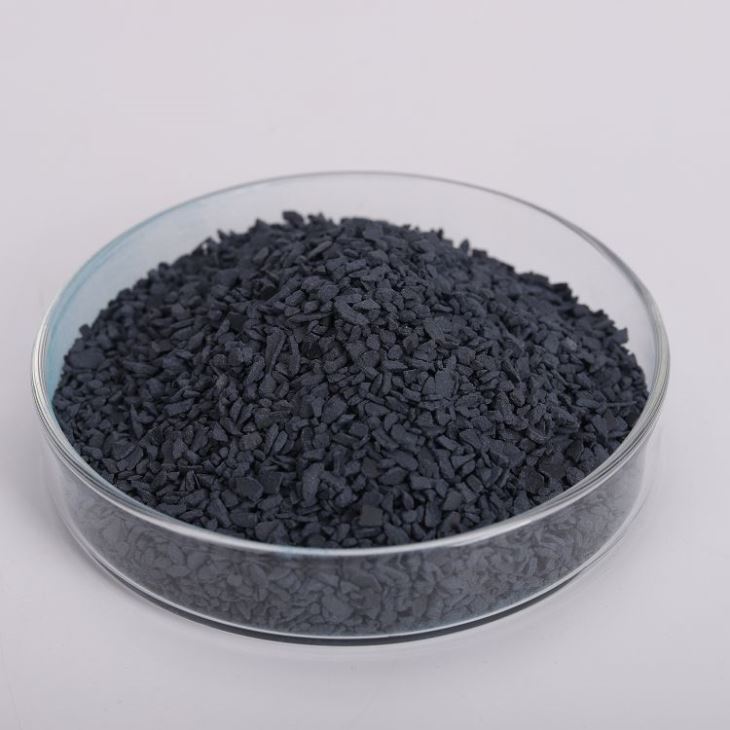

RuiDa's Phenolic Molding Plastic (Bakelite) are combined with phenolic formaldehyde resin, wood flour, hexamine, pigment and other materials.
PFS-868: compression or injection grade; color: black, red, brown
Product Properties(PFS-868)
1. 15%-20% glass fiber reinforced
2. Best abrasion-resistance,
3. Good mechanical property, heat-resistance, electrical property.
Applications

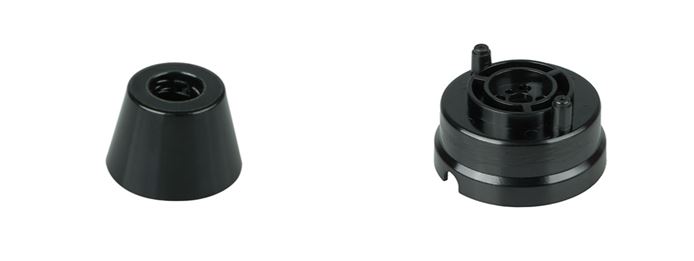

Electrical insulated structure components with high mechanical strength requirement.
Product Specification
Q/ZWS.C10.1B-2002 | ||||
Workshop | PMC Third Line | Report Number | 2020/5/22 | |
Porduct Name | Phenolic Molding Plastic | Production Date | 2020/5/22 | |
Model | PFS-868 | Report Date | 2020/5/22 | |
Color | Red/Black | Technical Standard | GB 1404-95 | |
Number | Test Items | Index | Test Result | |
1 | Fluidity, mm | 90-140 | 130 | |
2 | Volatile Content % ≤ | 4.00 | 2.3 | |
3 | Exterior | Qualified | ||
4 | Boiling Water-proof | Qualified | ||
5 | Flexural Strength, Mpa ≥ | 70 | 87 | |
6 | Impact Strength, KJ/㎡ ≥ | 1.5 | 2.12 | |
7 | Temperature of hot distortion, ℃ ≥ | 150 | 173 | |
8 | Water absorption(Cold water) mg ≤ | 40 | 20 | |
9 | Molding Shrinkage, % | 0.5-1.0 | 0.8 | |

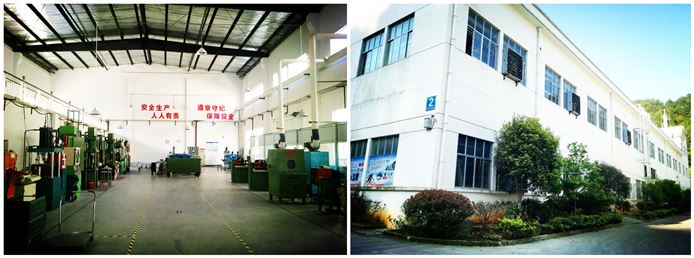

Company Environment
Packaging: Paper bag with wet proof inner plastic. 25kg/bag
MOQ: 1 ton
Port of lading: Ningbo, China
More than 36 years experience in this field.
