RuiDa's Phenolic Molding Material(PF-MC) are combined with phenolic formaldehyde resin, wood flour, hexamine, pigment and other materials.
PF2C3-431J: injection grade; color: black
Product Properties(PF2C3-431J)
1. Filled high temperature endured mineral materials and fire retardant,
2. With best flammability and hot tin(Sn) endurance performance

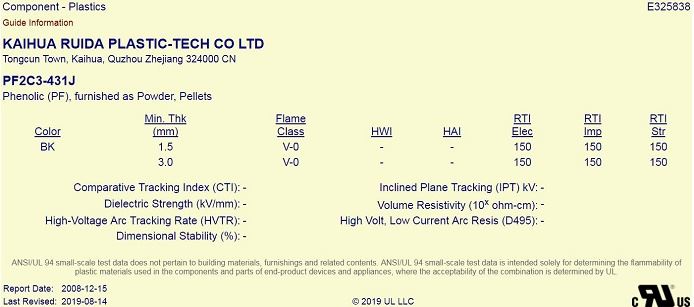

3. UL listed molding compound, 3.0 mm / V-0 (ALL).
Applications
Used for making coil structure framework, electrical insulated components.
Production Specification
Number | Test Items | Index | Test Result |
1 | Fluidity, mm | 120-140 | 133 |
2 | Exterior | Qualified | |
3 | Boiling Water-proof | Qualified | |
4 | Flexural Strength, Mpa ≥ | 60 | 64 |
5 | Impact Strength, KJ/㎡ ≥ | 2.0 | 2.08 |
6 | Temperature of hot distortion, ℃ ≥ | 160 | 179 |
7 | Water absorption(Cold water) mg ≤ | 30 | 21 |
8 | Molding Shrinkage, % | 0.2-0.6 | 0.41 |
9 | Dielectric resistance after 24h in water, MΩ ≥ | 109 | 6.9 x 109 |
10 | Dielectric Strength, MV/m ≥ | 3.0 | 3.7 |
11 | Resistance of track of electrical leakage ≥ | 175 | 175 |
12 | Flammability UL94 1.5mm | V-0 | V-0 |
11 | Injection Molding Time | 9-10.5s | 10 |

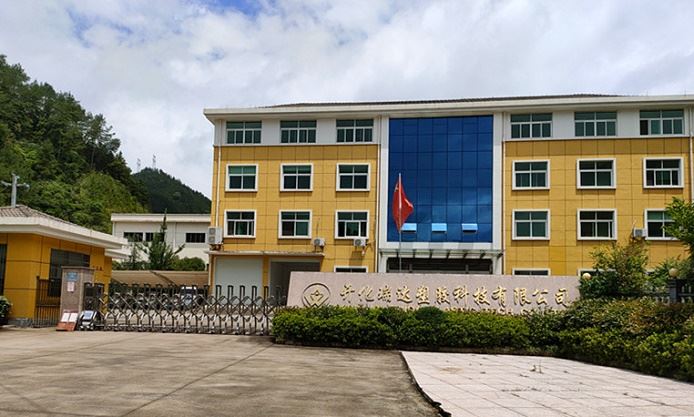

Company Information
Kaihua Ruida Plastic-Tech Co., Ltd was founded in 1984, which is one of the main manufacturer of Urea moulding compound, Phenolic moulding compound and Melamine moulding compound in China.
currently has over 400 staffs with a floor area of 90 thousand square meters, with annual production capacity 45000 ton.
Certificate
1x20GP can load 21 tons, 840 bags, without pallet.
Delivery period: within 7 days.
Packaging: PP/ Kraft bag with wet proof inner bag. 25kgs/bag
Storage period: 1 year kept in cool warehouse.
