RuiDa's Melamine Formaldehyde Moulding Compound (MMC) are based on melamine formaldehyde resin and takes cellulose, minerals as the filling, together with both lubricant, hardener and pigment, etc.
MF1G-5335: granule form, compression grade; color: red
Product Properties
1. Melamine moulding compound finished item with surface hardness .
2. With excellent resistance to abrasion, boiling water,detergents,weak acids
3. Are specifically approved for food contact.
2. Color difference: Delta E <1.0
Applications

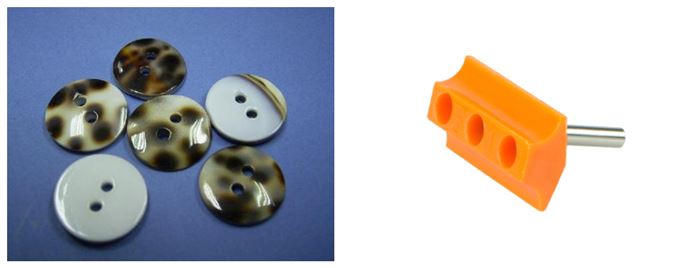

Melamine formaldehyde moulding compound granule mostly used for making low-voltage electrical equipment, handle, buttons, etc. Granule size: 1.0mm-2.0mm. Granule material will make the workshop's environment much better etc.
Color Difference
Color standard | L | a | b |
87.25 | 0.45 | -0.25 | |
Acceptance range | 0~0.6 | ±0.2 | ±0.3 |
△E：≤0.6 | |||
Production Specification
Number | Test Items | Index | Test Result |
1 | Fluidity, mm | 110-140 | 115 |
2 | Volatile Content % ≤ | 5.00 | 3.03 |
3 | Exterior | Qualified | |
4 | Boiling Water-proof | Qualified | |
5 | Flexural Strength, Mpa ≥ | 80 | 87 |
6 | Impact Strength, KJ/㎡ ≥ | 1.7 | 1.9 |
7 | Temperature of hot distortion, ℃ ≥ | 115 | 150 |
8 | Water absorption(Cold water) mg ≤ | 50 | 25 |
9 | Molding Shrinkage, % | 0.5-1.0 | 0.55 |
10 | Dielectric resistance after 24h in water, MΩ ≥ | 104 | 2.5*105 |
11 | Dielectric Strength, MV/m ≥ | 5.0 | 9.5 |

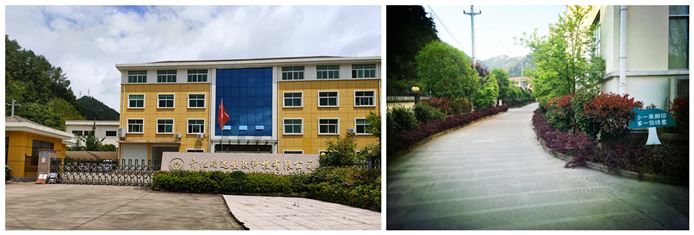

Company View
Packaging: Paper bag with wet proof inner plastic. 25kg/bag
Storage: Kept in airy, dry and cool room.
Storage period: six months from the manufacturing date.
