RuiDa's Melamine Molding Compound (MMC) are based on melamine formaldehyde resin and takes cellulose, minerals as the filling, together with both lubricant, hardener and pigment, etc.

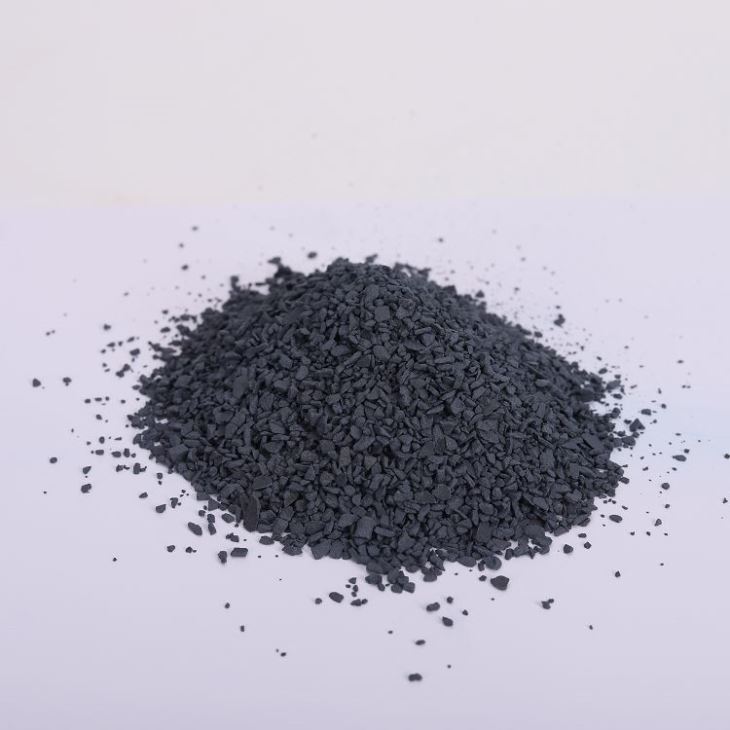

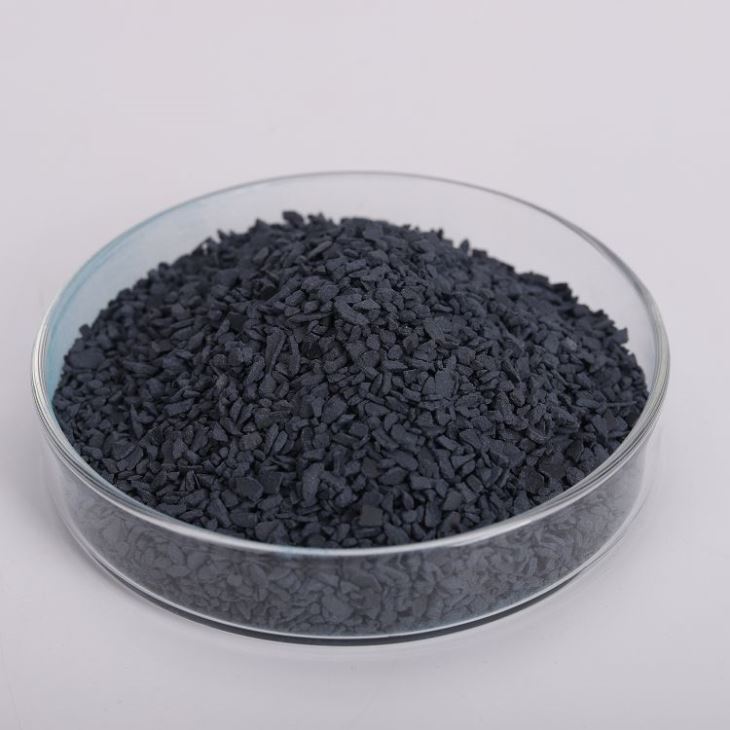

MF1I-7119: granule form, injection grade; color: black
Product Properties
1. Melamine moulding compound finished item with surface hardness .
2. With excellent resistance to abrasion, boiling water,detergents,weak acids
3. Special grade for Gree air condition insulated parts.

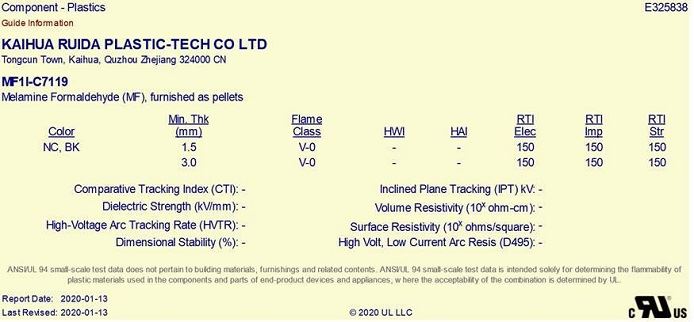

4. UL approved
Applications

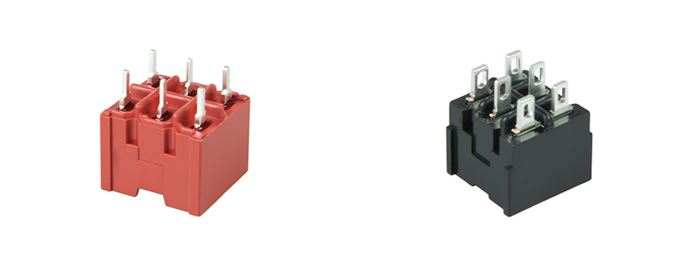

Melamine molding compound granule injection grade, mostly used for making low-voltage electrical equipment, handle, buttons, etc. Granule size: 1.0mm-2.0mm. Granule material will make the workshop's environment much better etc.
Production Specification
Number | Test Items | Index | Test Result |
1 | Fluidity, mm | 110-140 | 135 |
2 | Volatile Content % ≤ | 5.00 | 3.03 |
3 | Exterior | Qualified | |
4 | Boiling Water-proof | Qualified | |
5 | Flexural Strength, Mpa ≥ | 80 | 87 |
6 | Impact Strength, KJ/㎡ ≥ | 1.7 | 2.05 |
7 | Temperature of hot distortion, ℃ ≥ | 150 | 185 |
8 | Water absorption(Cold water) mg ≤ | 50 | 25 |
9 | Molding Shrinkage, % | 0.5-1.0 | 0.55 |
10 | Dielectric resistance after 24h in water, MΩ ≥ | 104 | 4.5*105 |
11 | Dielectric Strength, MV/m ≥ | 5.0 | 9.5 |
Certificate
Loading Details
1x20GP can load 20 tons, 800 bags, no pallet.
Delivery period: within 15 days.
Packaging: PP bag with wet proof inner bag. 25kgs/bag
Storage period: 6 months kept in cool warehouse.
